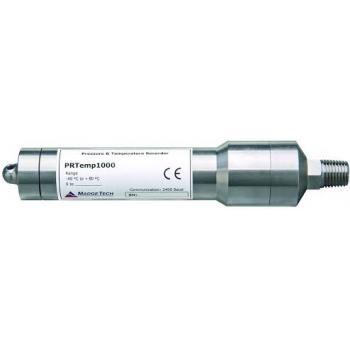

The PRTemp1000 is a rugged pressure recorder to accurately monitor and record pressure and temperature at user programmable reading intervals. The rugged stainless steel design allows for the device to be placed in harsh environments, which makes it well suited for use with air conditioning systems, chilled water, hot water, air, gas, oil and steam pressure systems.
The internal temperature sensor provides accurate temperature measurements without the need for a separate temperature recorder. The logger can be started to take measurements as often as every two seconds, up to one reading every twelve hours. It will store up to 16,383 readings in its non-volatile memory.
The PRTemp1000 uses a rugged stainless steel pressure strain gauge to accurately measure the pressure. The device comes standard with a ¼” NPT fitting, which allows the logger to be connected to almostany pressure adapter. The PRTemp1000 is also fully submersible.
There are many different pressure ranges available to fit most any application. The standard pressure ranges are 30 PSIA(G), 100 PSIA(G), 300 PSIA(G), 500 PSIA(G), 1000 PSIA and 5000 PSIA. Other ranges may also be available upon request.
|
Temperature Sensor
|
Semiconductor
|
|
Temperator Range
|
-40 ºC to +80 ºC (-40 ºF to +176 ºF)
|
|
Temperatur Resolution
|
0.1 ºC (0.18 ºF)
|
|
Calibrated Accuracy
|
±0.5 ºC (±0.9 ºF)
|
|
Pressure Sensor
|
Semiconductor strain gauge
|
|
Pressure Range
|
0 to 30, 100, 300 and 500 PSIA/G;
0 to 1000 and 5000 PSIA
|
|
Pressure Resolution
|
0.002, 0.005, 0.02, 0.05 PSIA/G;
0.05, 0.2 PSIA
|
|
Calibrated Accuracy
|
2 %FSR, 0.25 % @ 25 ºC typical
|
|
Pressure Respon Time
|
0.1 ms (10 to 90 %FSR)
|
|
|
±0.5 %FSR; ±0.2 % typical
|
|
Adaptor
|
1/4 inch male NPT or submersible up to 60 PSI
|
|
Start Mode
|
Software programmable immediate start or delay start up to six months in advance
|
|
Real Time Recording
|
May be used with PC to monitor and record data in real time
|
BATTERY WARNING: RISK OF FIRE OR EXPLOSION. DO NOT RECHARGE, FORCE OPEN, HEAT OR DISPOSE OF IN FIRE.
|
Memory
|
16,383 readings per channel, 32,766 total readings
|
|
Reading Rate
|
1 reading every 2 seconds up to 1 reading every 12 hours
|
|
Calibration
|
Digital calibration through software
|
|
Calibration Date
|
Automatically recorded within device
|
|
Battery Type
|
3.6V lithium battery included; user replaceable
|
|
Battery Life:
|
1 years typical
|
|
Data Format
|
Date and time stamped ºC, ºF, K, ºR ; PSIA(g), inches, feet, mmHg, bar, Torr, kPa,
|
|
Time Accuracy
|
±1 minute/month (at 20 ºC, RS232 port not in use )
|
|
Computer Interface Package
|
PC serial or USB (interface cable required); 2,400 baud
|
|
Software:
|
XP SP3/Vista/Windows 7/Windows 8
|
|
Operating Environment:
|
-40 ºC to +80 ºC (-40 ºF to +176 ºF), 0 %RH to 100 %RH
|
|
Dimensions:
|
6.4 in x 1.25 in (163 mm x 32 mm)
|
|
Weight:
|
12 oz (340 g)
|
|
Materials
|
Stainless Steel
|
|
Approvals:
|
CE
|
